New patent compact design 8bar 500lpm HBOT air cooler refrigerant compressed air dryer for oxygen concentrator air compressor

Products > Refrigerant Air Dryer > New patent compact design 8bar 500lpm HBOT air cooler refrigerant compressed air dryer for oxygen concentrator air compressor

New patent compact design 8bar 500lpm HBOT air cooler refrigerant compressed air dryer for oxygen concentrator air compressor

Product spec.

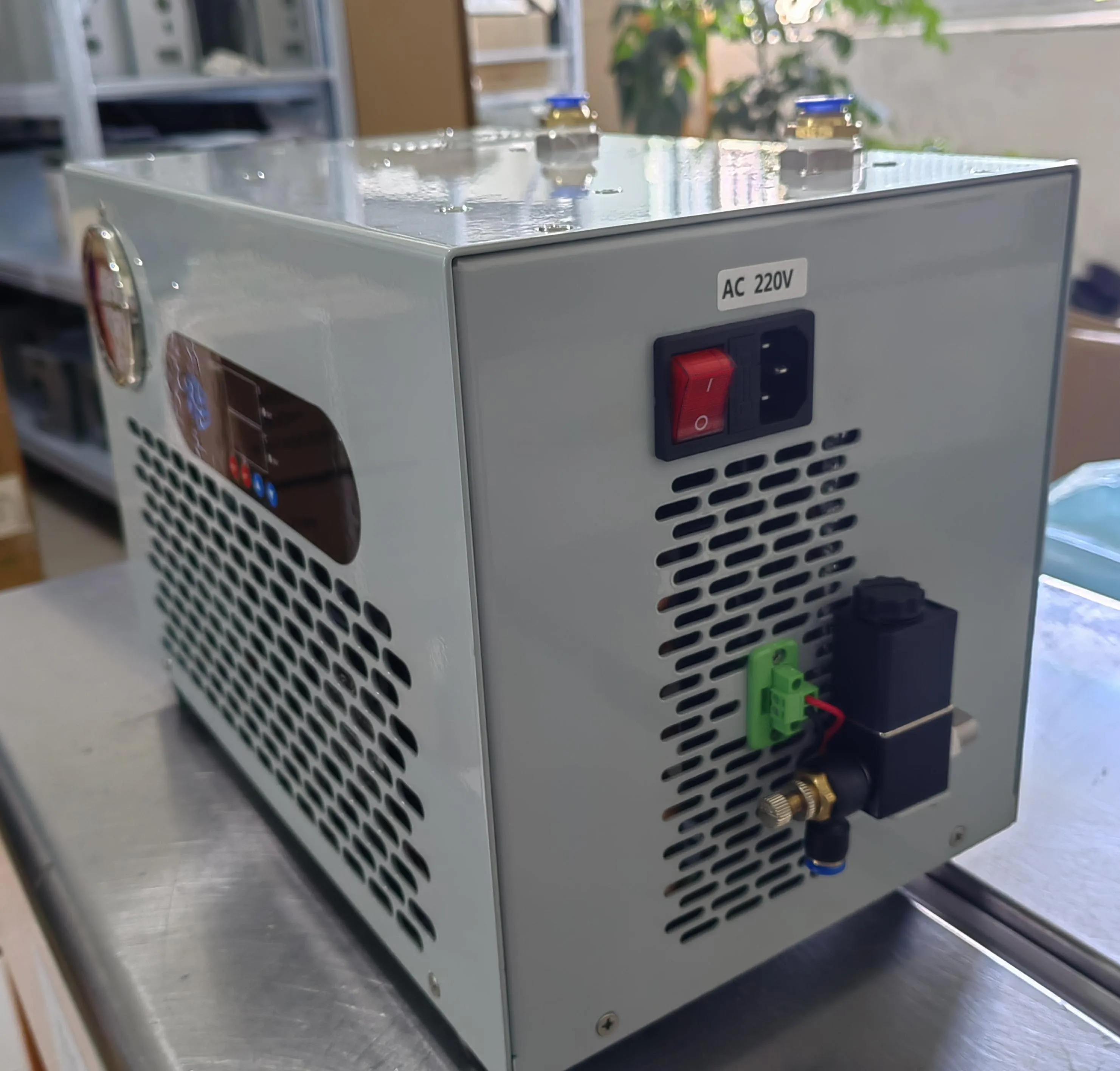

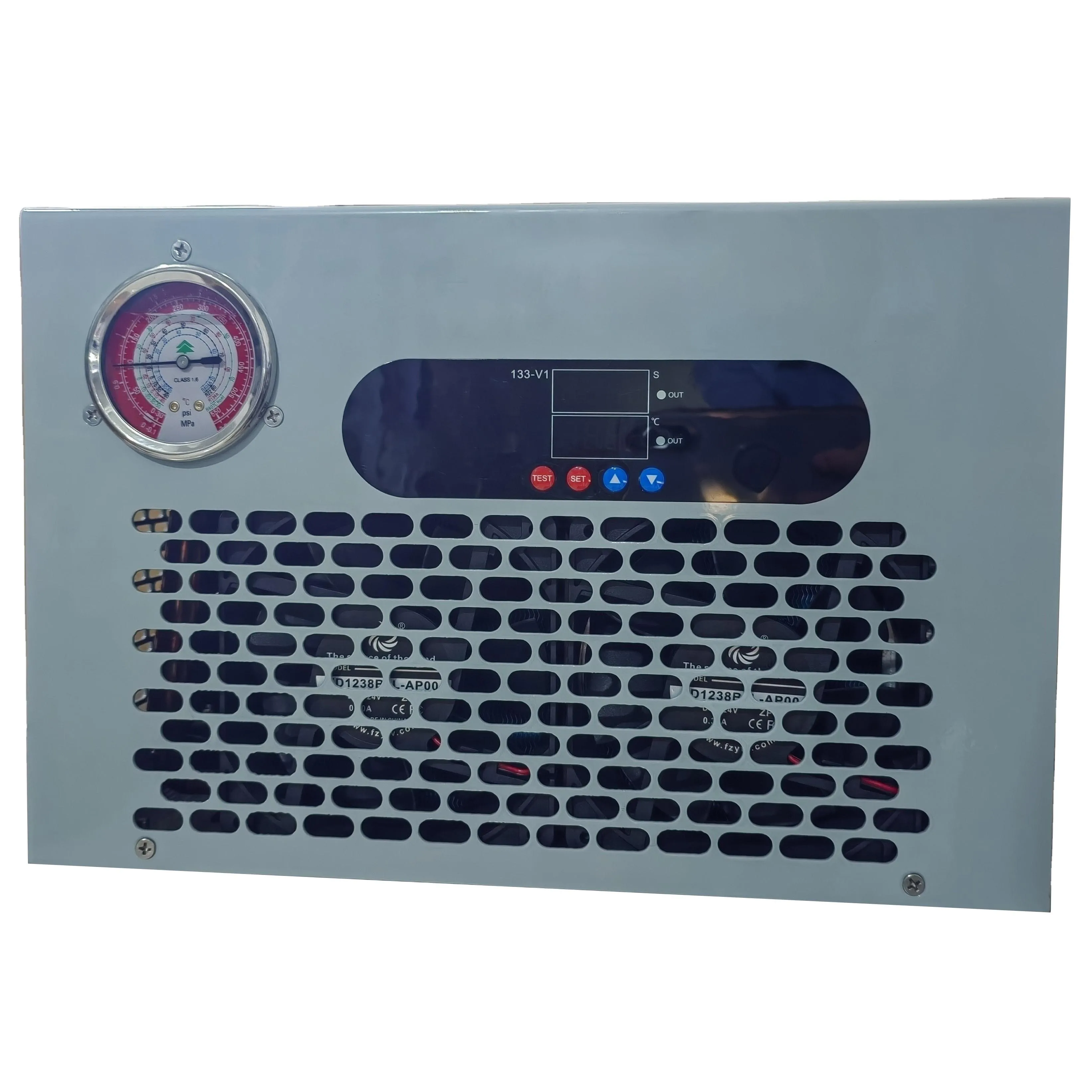

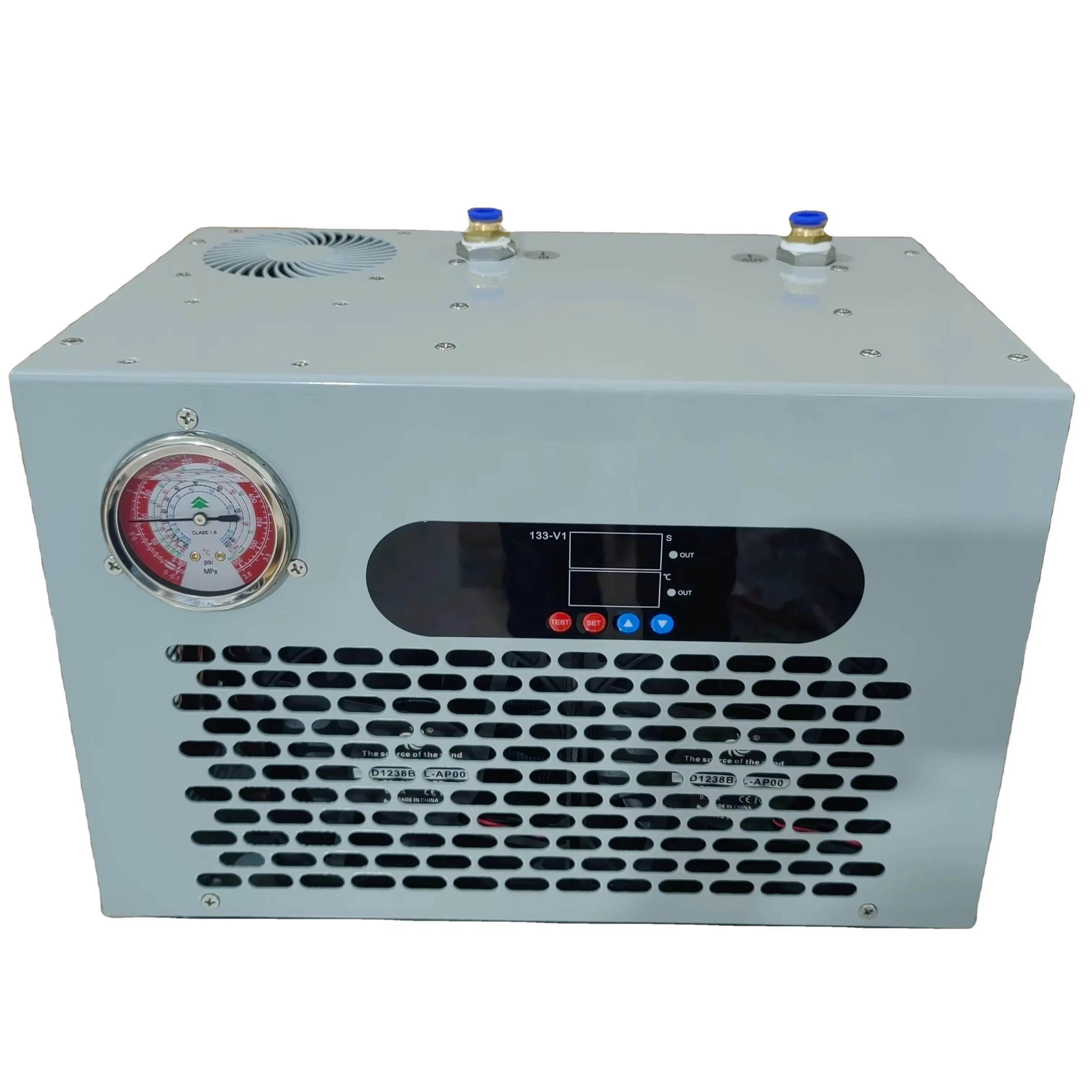

Mini electronic semiconductor refrigerant dryer
Feature:
1.Refrigerant R134A
2.Compact design
3.Low noise(58-60dbs)
4.Intelligent control
5.Low dew point
6.Refrigerated by semiconductor without compressor inside, without refrigerant
7. High efficiency heat exchanger
8.Heat exchanger temperature real-time display and adjustable
9. Easy installation & easy use.
Rated voltage:110/220VAC
Rated ampere:1.2A
Rated Power:300W
Rated flow:500L/min
Outlet dew:lower than 10°C
Outlet air humidity:20%
Rated pressure:lower than 8bar
Inlet size:G1/2
Outlet size:G1/2
Drain size:Φ6
Enviroment temperature:0-40°C
Inlet air temperature: Not higher than 45°C
Cold chamber temperatue:0-10°C(adjustable)
Drain time setting:0-9999s

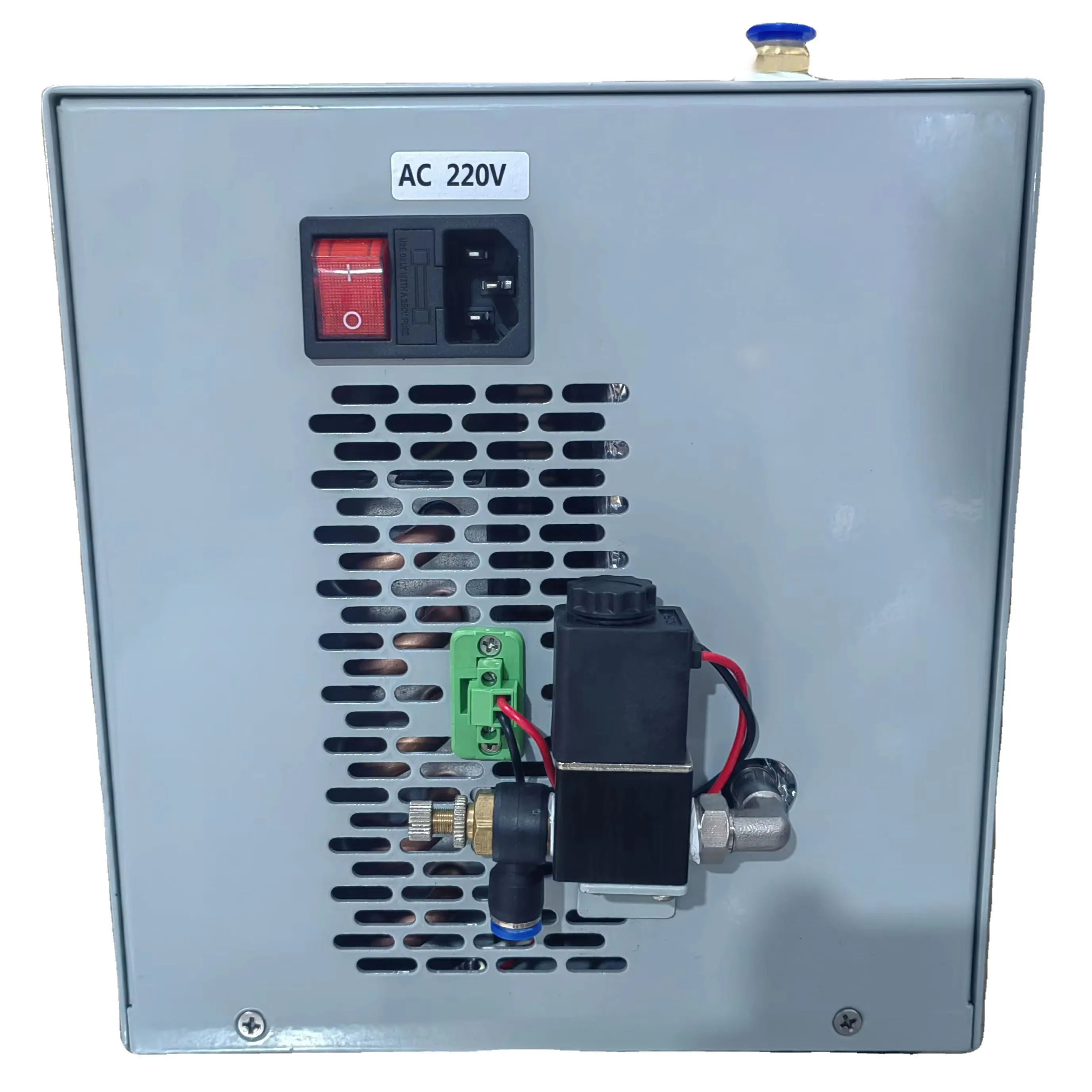

Drain way: solevoid valve
Product size:38.5x21.7x25cm
CTN size:45*31*34CM
Q'ty/CTN:1 pc
G/N weight:14.5kg/12.7kg
