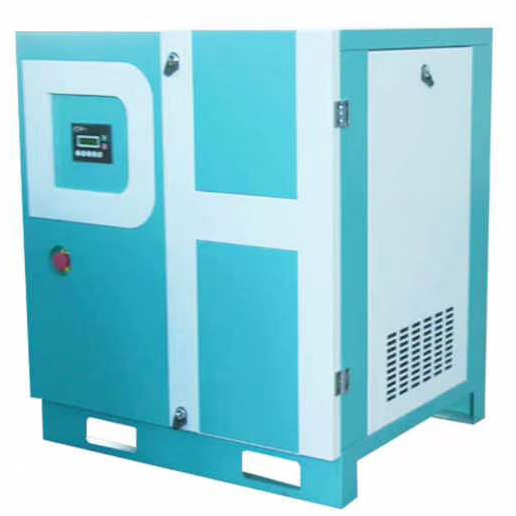

Screw Air Compressor DHYC-30A

Products > Air compressor > Screw Air Compressor DHYC-30A

Screw Air Compressor DHYC-30A

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
Overview
Essential details

  • Applicable Industries:

  • Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Construction works , Energy & Mining

  • Showroom Location:

  • None

  • Condition:

  • New

  • Type:

  • Screw

  • Configuration:

  • Stationary

  • Power Source:

  • AC POWER

  • Lubrication Style:

  • Lubricated

  • Place of Origin:

  • China

  • Brand Name:

  • HX

  • Model Number:

  • DHYC-30A

  • Voltage:

  • 220V/380V/415V

  • Dimension(L*W*H):

  • 120*85*115cm

  • Weight:

  • 300Kgs

  • Warranty:

  • 1 Year

  • Working Pressure:

  • 7 bar, 8 bar, 10 bar, 12.5 bar, 15 bar

  • Air capacity:

  • 3.7m3/min

  • Machinery Test Report:

  • Not Available

  • Video outgoing-inspection:

  • Provided

  • Marketing Type:

  • Hot Product 2023

  • Warranty of core components:

  • 1 Year

  • Core Components:

  • PLC, Engine, Motor

  • Gas Type:

  • Air

  • Product name:

  • PM VSD Screw Air Compressor

  • Feature:

  • Coaxial drive

  • Advantage:

  • Best quality, Durable

  • Core component inside:

  • quality components

  • Power:

  • 22kw/30hp

  • Motor:

  • high efficiency motor

  • Motor material:

  • NdFeB

  • Noise:

  • 65dB(A)
Supply Ability

  • Supply Ability

  • 200 Piece/Pieces per Month

Packaging & delivery

  • Packaging Details

    • Strong wooden case suitable for seaway transport

  • Port

    • Xiamen

  • Lead time:

  • Quantity(pieces)1 - 56 - 50>50
    Lead time (days)745To be negotiated
Product Description

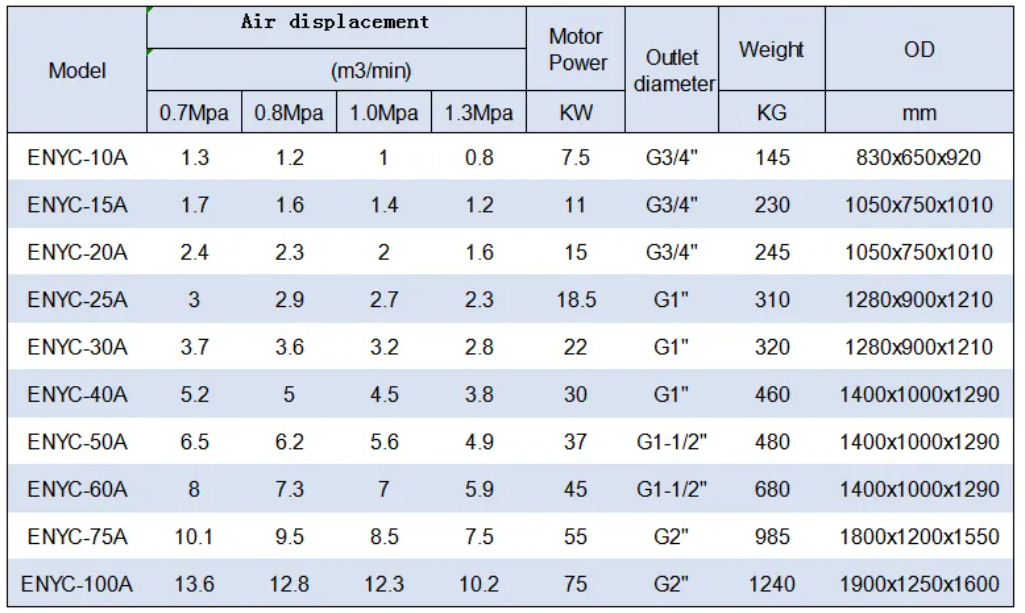

Product spec.

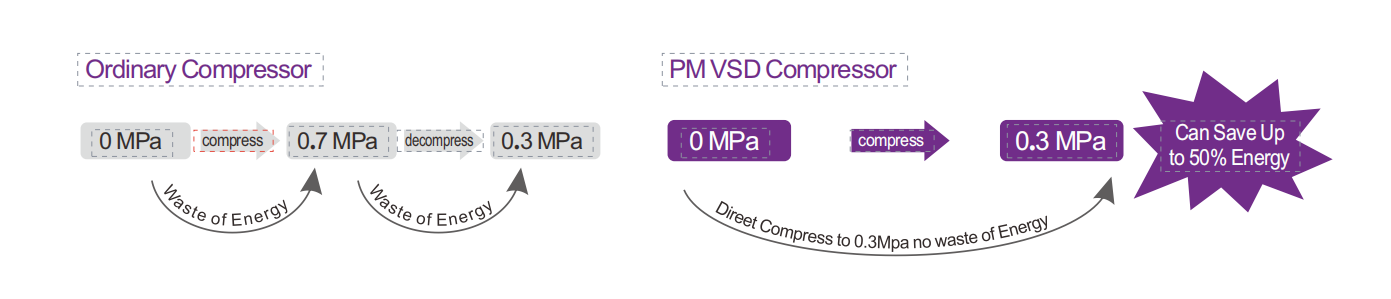

Energy Saving Permanent Magnet VSD Screw Air Compressor
Feature: New design High efficiency, High quality

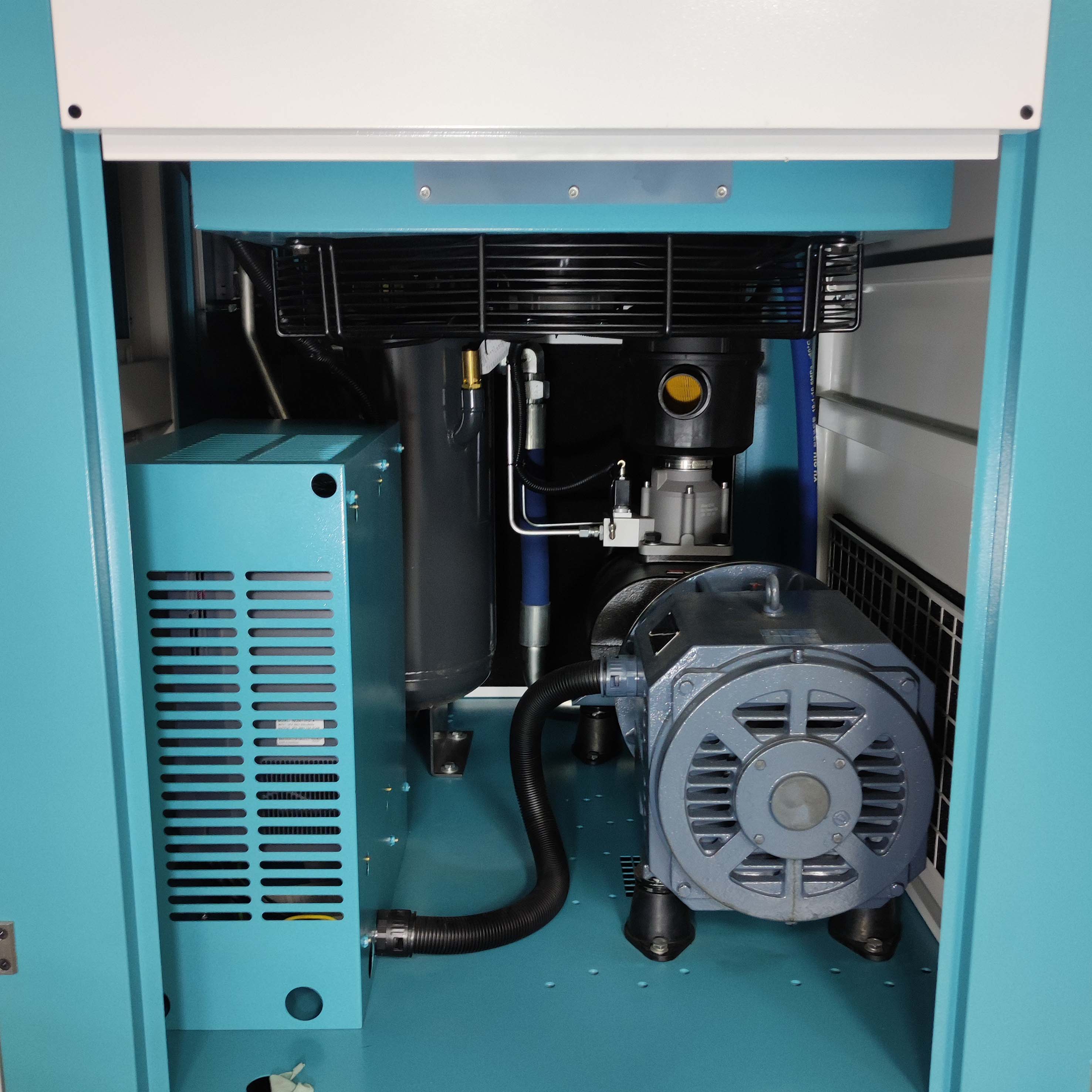

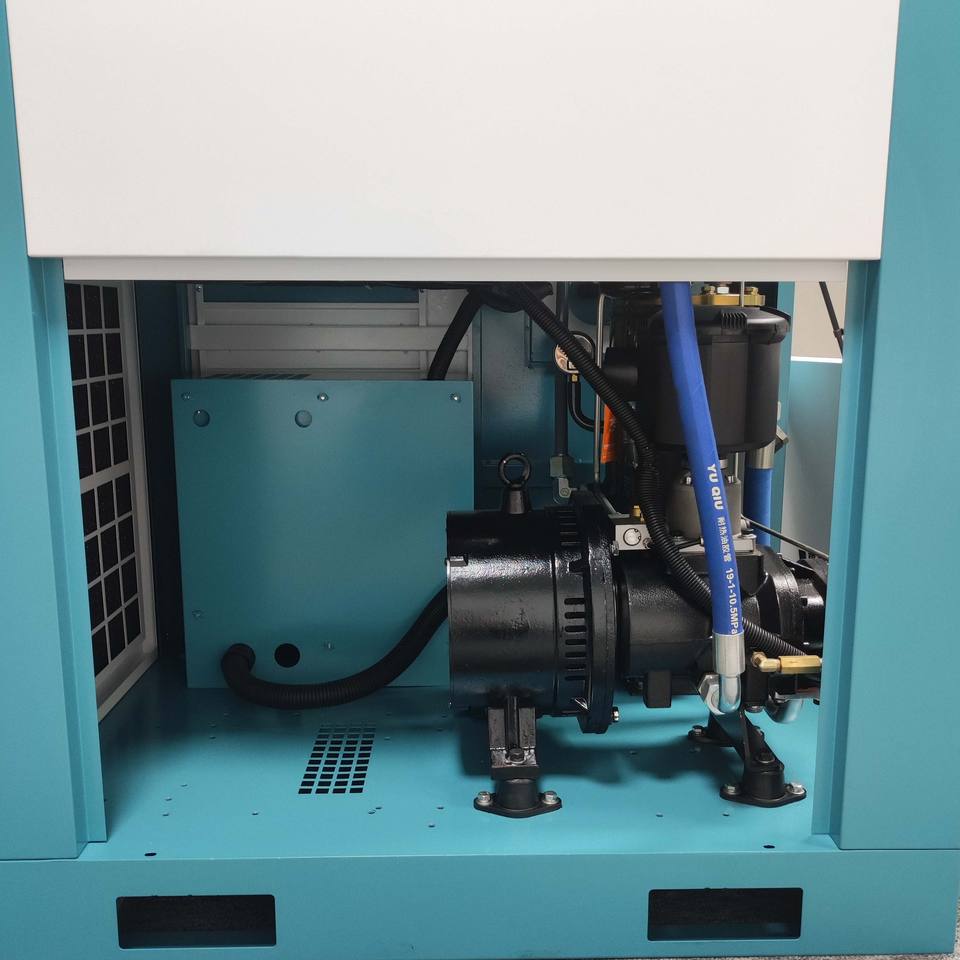

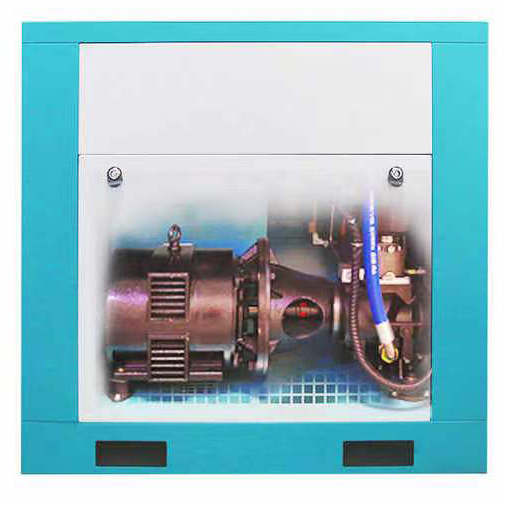

* Coaxial drive makes higher efficiency & zero transmission loss

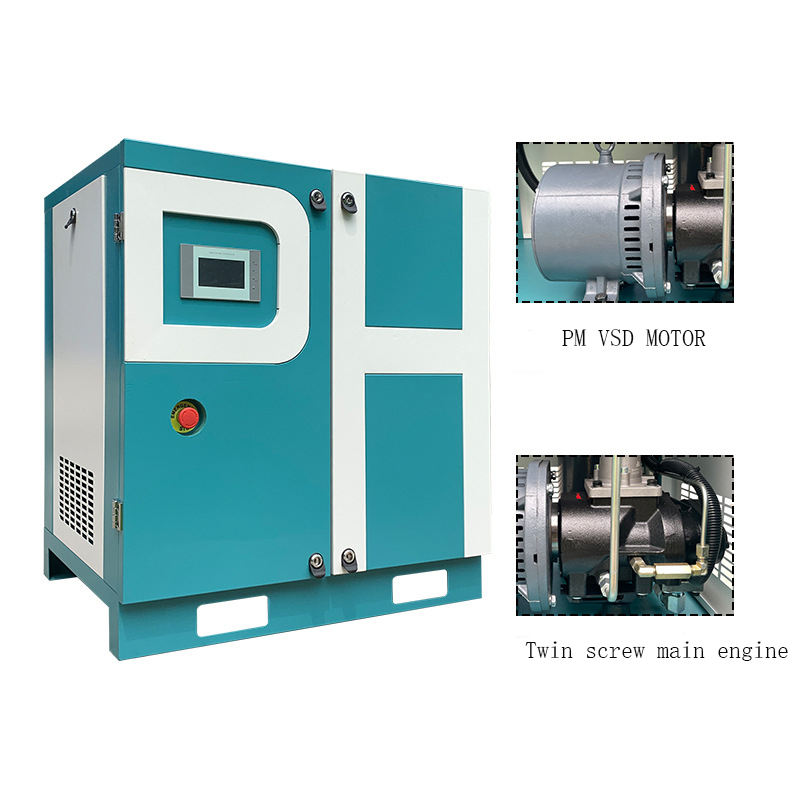

* PM synchronous motor rotates same as excitation synchronous motor with higher efficency, smaller size, lower weight & more compact structure
Product size:120*85*115cm
Net weight:300kgs
Voltage:220V/380V/415V
Rated Power:22kw/30hp
