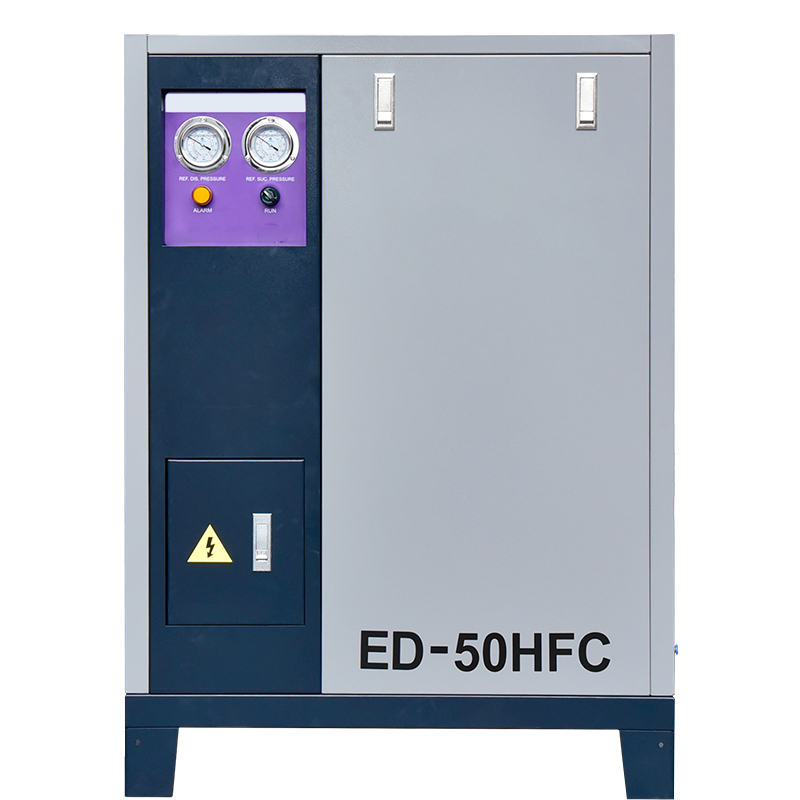

Refrigerant Dryer ED-50HFC

Products > Refrigerant Air Dryer > Refrigerant Dryer ED-50HFC

Refrigerant Dryer ED-50HFC

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
Overview
Essential details

  • Type:

  • Freeze Drying Equipment

  • Application:

  • Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing

  • Condition:

  • New

  • Place of Origin:

  • China

  • Brand Name:

  • huaxiang

  • Voltage:

  • 110-220V

  • Power:

  • 1520W

  • Dimension(L*W*H):

  • 80x65x112cm

  • Key Selling Points:

  • Best quality, very durable

  • Warranty:

  • 1 Year

  • Weight (KG):

  • 124

  • Applicable Industries:

  • Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Energy & Mining, Other, Other

  • Showroom Location:

  • Viet Nam

  • Marketing Type:

  • Hot Product 2022

  • Machinery Test Report:

  • Not Available

  • Video outgoing-inspection:

  • Provided

  • Warranty of core components:

  • 2 years

  • Core Components:

  • Other

  • Product name:

  • Refrigerant air dryer

  • Feature:

  • Durable,long life

  • Advantage:

  • Best quality

  • Volume:

  • 7.0cbm/Min

  • Dew point:

  • 2-10℃

  • Working pressure:

  • 4-10kgs/0.4-1.0Mpa

  • Refrigerant:

  • R-22

  • Refrigerane filling amount:

  • 1.25kgs
Supply Ability

  • Supply Ability

  • 2000 Piece/Pieces per Month

Packaging & delivery

  • Packaging Details

    • Strong wooden case suitable for seaway transport

  • Port

    • XIAMEN

  • Lead time:

  • Quantity(pieces)1 - 5051 - 1000>1000
    Lead time (days)1575To be negotiated
Product Description
Product spec.
High inlet temperature air cooled refrigerant air dryer
Condenser: The copper fin in the condenser has a high heat transfer efficience to increase the degree of super cooling and refrigerating capacity.
Panasonic Refrigerant Compressor:with super high energy efficiencies and excellent reliability which guarantee the preeminent performance of refrigerant dryers.
Electronic Drain Valve:It is installed with anti
blocking device to prevent any blocking in the drainer.
Power supply:1PH/220V/50HZ
Rated Power:1520W
Rated flow:7.0cbm/min
Pressure dew point: 2-10°C
Working pressure:0.4-1.0Mpa
Pressure loss:≤0.035Mpa
High pressure gauge range:1.5-1.7Mpa
Low pressure gauge range:0.3-0.5Mpa
Refrigerant: R22
Refrigerane filling amount:1250g
Refrigerating capacity:3.84kw
Interface caliber：G1 1/2"
Ambient temperature:2-40°C
Inlet air temperature: 5-80°C
Drain way: electronic drain valve
Product size:80*65*112cm
Wodden case size:85*69*116CM
Q'ty/CTN:1 pc
G/N weight:132/124kgs
