Screw air compressor XS-20

Products > Air compressor > Screw air compressor XS-20

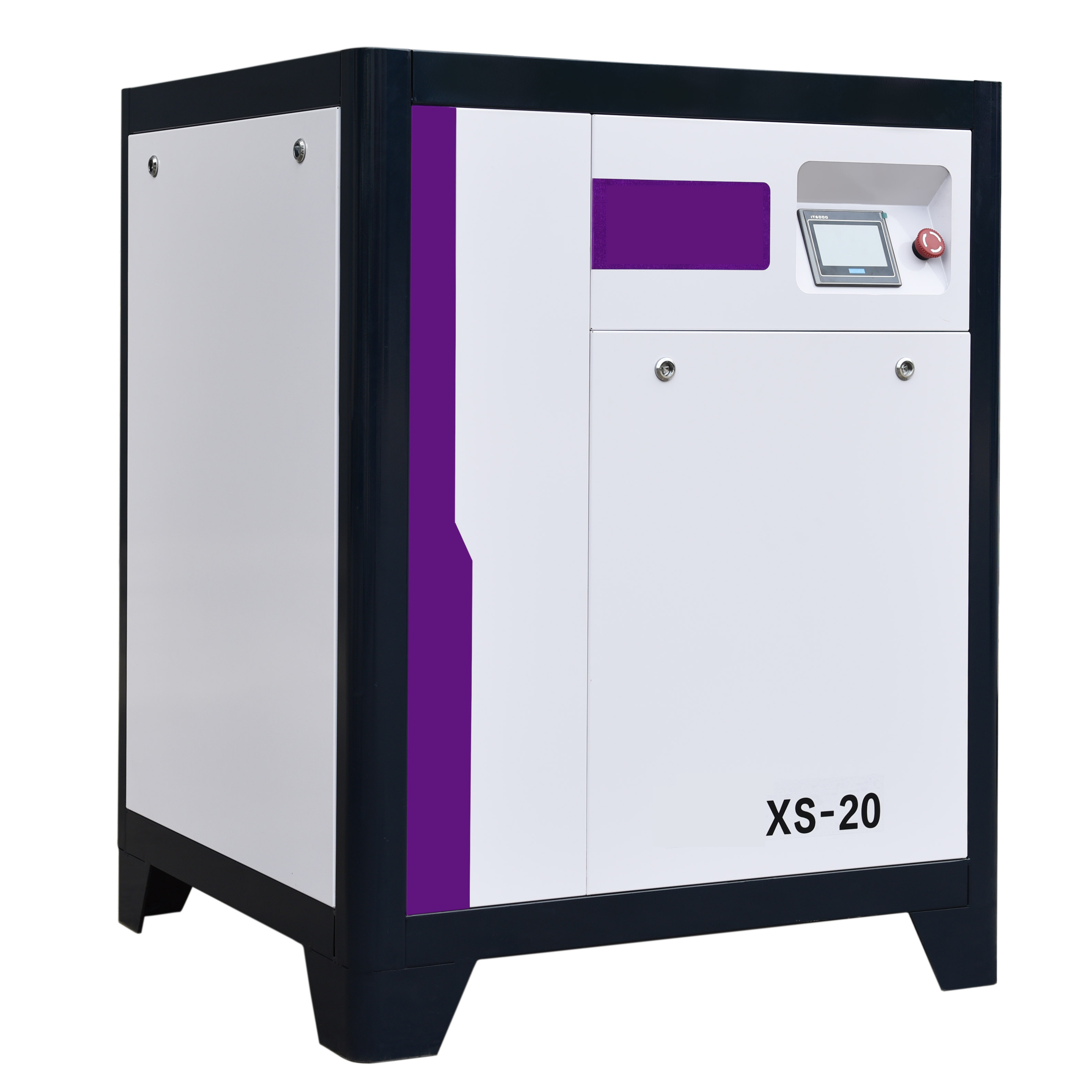

Screw air compressor XS-20

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
Overview
Essential details

  • Applicable Industries:

  • Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Construction works , Energy & Mining

  • Showroom Location:

  • Viet Nam

  • Condition:

  • New

  • Type:

  • Screw

  • Configuration:

  • Stationary

  • Power Source:

  • AC POWER

  • Lubrication Style:

  • Lubricated

  • Place of Origin:

  • China

  • Brand Name:

  • JAGUAR

  • Model Number:

  • XS-20

  • Voltage:

  • 380V/3PH/50Hz

  • Dimension(L*W*H):

  • 90*75*113cm

  • Weight:

  • 268 kgs

  • Warranty:

  • 1 Year

  • Working Pressure:

  • 7 bar, 8 bar, 10 bar, 12.5 bar, 15 bar

  • Machinery Test Report:

  • Provided

  • Video outgoing-inspection:

  • Provided

  • Marketing Type:

  • Hot Product 2022

  • Warranty of core components:

  • 2 years

  • Core Components:

  • PLC, Engine, Motor

  • Gas Type:

  • Air

  • Product name:

  • PM VSD Screw Air Compressor

  • Feature:

  • Coaxial drive

  • Advantage:

  • Best quality, Durable

  • Core component inside:

  • famous international brand components

  • Power:

  • 15kw/20hp

  • Motor:

  • IE4 high efficiency motor

  • Motor material:

  • NdFeB

  • Protection level:

  • IP65

  • Noise:

  • 62dB(A)

  • Lubricant capacity:

  • 10l
Supply Ability

  • Supply Ability

  • 2000 Piece/Pieces per Month

Packaging & delivery

  • Packaging Details

    • Strong wooden case suitable for seaway transport

  • Port

    • Xiamen

  • Lead time:

  • Quantity(pieces)1 - 56 - 50>50
    Lead time (days)730To be negotiated
Product Description
Product spec.
Permanent Magnet VSD Screw Air Compressor
Feature: New design High efficiency, High quality
* Coaxial drive makes higher efficiency & zero transmission loss
*IE4 Permanent magnet motor running speed changes by site requirement.
*IP65 protection is assurd by liquid cooling enclosure motor housing.
* PM synchronous motor rotates same as excitation synchronous motor with higher efficency, smaller size, lower weight & more compact structure
Power supply:3PH/380V/50HZ
Rated Power:15kw/20hp
Product size:90*75*113cm
Wooden case size:94*79*117CM
Q'ty/Case:1 pc
G/N weight:278/268kgs



Discharging pressure(Mpa)
Discharging volume(m3/min)
0.7
2.5
0.8
2.4
1.0
2
1.25
1.7
1.5
1.5
